MyRay HyperionX9 pro Imaging System - Innovation, power and versatility.

Easily upgraded to all configurations
Reversible CEPH arm
Operates with relocatable 2D sensor or two sensors
The most compact 3-in-1 system
Direct conversion 2D sensor

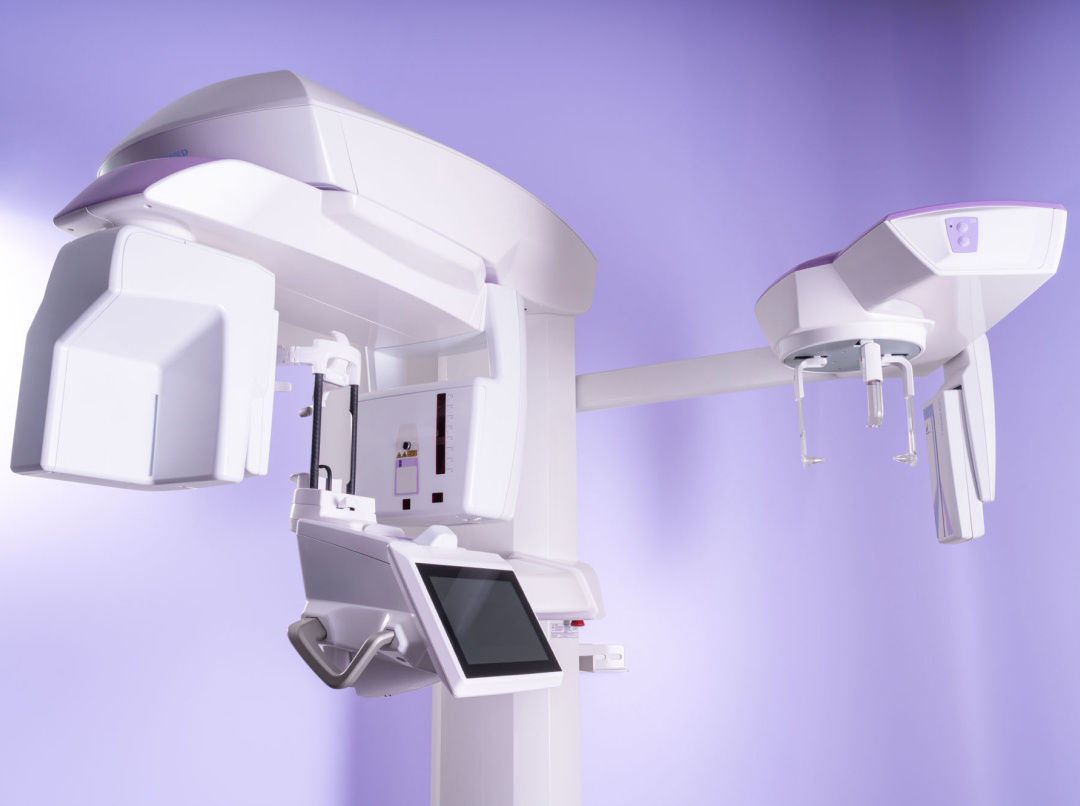

MyRay HyperionX9 pro Imaging System


Direct Conversion

The standard 2D sensor can be replaced with the innovative direct conversion DCIII sensor to provide SuperHD images with low doses.

DCIII technology applies the innovative direct conversion sensor that has revolutionised PiE (Powerful image Enhancer) 2D imaging. Standard systems convert X-rays into visible light which is, in turn, converted into electrical signals to create the digital image. With DCIII technology, instead, the sensor receives and processes the X-rays directly, resulting in increased sensitivity and efficiency without any loss of detail. This lets users obtain both high resolution images with greater contrast at low doses and extremely detailed images from fast-scan, ultra-low dose protocols such as QuickCEPH or QuickPAN.



SuperHD diagnosis.

MultiFOV and high resolution: wonderfull 3D images for all your radiology needs.

Multi FOV from 4 x 4 to 13 x 16 cm
Upgraded generator
Extremely high resolution (up to 68μm)
Fast CB3D scan (as brief as 3.6 s)
Low dose



Capture every detail

High-definition images, extremely sharp details, upgraded MultiPAN system for maximum results in every situation.

The 2D sensor is easily relocated and interchangeable. You can choose, immediately or at a later date, between the STANDARD CMOS (CsI) sensor which generates sharp, uniform, high definition images while keeping doses low, or the revolutionary, even higher-performing CMOS (Cd-Te) direct conversion (DCIII) sensor that provides ultra-high resolution images at ultra-low doses and optimises Hyperion X9 pro performance.
Dedicated 2D sensors: DCIII (Cd-Te) and/or (CsI)
Ultra-high orthogonality and constant magnification
Variable collimation
Broad depth of field
PiE (Powerful Image Enhancer) filters



Optimise every perspective.

High performance, ultrafast scans and a complete selection of cephalometric projections. Choose the examination that best suits your diagnostic requirements.

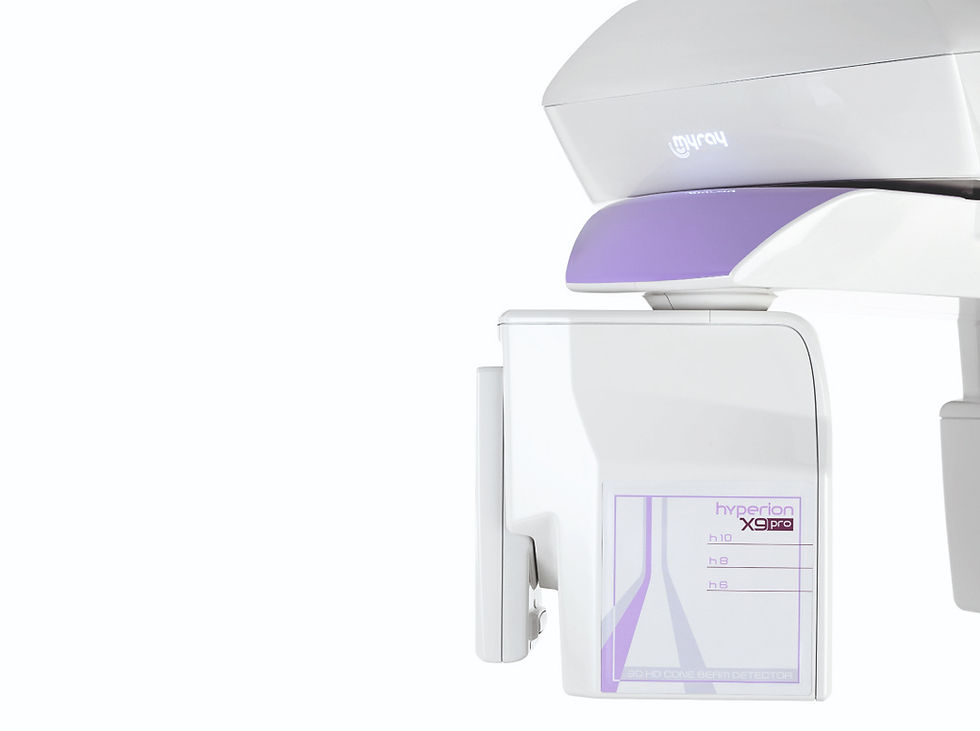

Hyperion X9 pro modular platform allows to add the teleradiography module at any time and with extreme ease. Its cephalometric arm is a true engineering masterpiece. Besides being the most compact system on the market, it is also reversible: it can be mounted either on the left or on the right, and, if space requirements change, Hyperion X9 pro CEPH changes with you. The relocatable latest-generation PAN/CEPH sensor, combined with an upgraded generator, guarantees excellent performance in any application. Select the exam that best suits your diagnostic needs choosing between ultrafast or high-quality scan.
Minimum bulk
Ultra-rapid scan
Variable field of view and FULL CEPH positioning
Dual sensor available, also PAN DCIII & CEPH STD combi
Postero-anterior and latero-lateral QuickCEPH
